Pt1000付きAquatrode Plus
6.0257.600
Pt1000付きAquatrode Plus
ja
6.0257.600
特長
低濃度イオンの水性溶媒 (例えば飲料水、プロセス水など) におけるpH測定/滴定のためのPt1000温度センサー内蔵の複合pH 電極、またこのようなサンプルにおいて著しく迅速な応答時間を示します。
固定グランドジョイントダイアフラムは汚れに対して耐性があります。
ブリッジ内部液として c(KCl) = 3 mol / L を使用する場合、保存液中での保存が推奨されます。
ブリッジ内部液は、塩化物フリーの内部液 (例えば硝酸カリウム c(KNO3) = 1 mol/L (6.2310.010)) と交換することができ、使用する内部液にて保管します。
技術仕様
| Shaft material | Glass |
|---|---|
| Measuring unit | pH |
| Temperature range, long-term (°C) | 0 ... 60 |
| Temperature range, short-term (°C) | 0 ... 60 |
| 使用可能pH範囲 | 0...13 |
| Max. installation length (mm) | 135 |
| Shaft diameter top (mm) | 12 |
| Shaft diameter bottom (mm) | 12 |
| Min. immersion depth (mm) | 20 |
| Electrode plug-in head | Metrohm plug-in head U |
| Temperature sensor | Pt1000 |
| Indicator electrode shape | Sphere |
| Membrane glass type | A |
| Membrane resistance | 80 ... 200 |
| Electrode zero point (mV) | ± 15 |
| Electrode slope | > 0.97 |
| Diaphragm | Fixed ground-joint diaphragm |
| Reference electrolyte type | c(KCl) = 3 mol/L (thickened) |
| Bridge electrolyte type | c(KCl) = 3 mol/L |
| 10 cmの水カラムでの内部液流量 (µL/h) | 5 ... 30 |
| Reference system | LL system |
| Resistance (kOhm) | 50 |
-
- Sleeve with SGJ 14/12 mm
- 6.1236.050
- Sleeve with SGJ 14/12 mm, polyethylene.
- PCS
- 1
- 保存容器
- 6.2008.040
- ホルダー 6.2008.050 とともに使用すると 807 Dosing Unit の電極用のホルダーになります。
- <p>ホルダー 6.2008.050 とともに使用すると 807 Dosing Unit の電極用のホルダーになります。</p>
- PCS
- 1
-
- Sleeve with SGJ 14/12 mm
- 6.1236.050
- Sleeve with SGJ 14/12 mm, polyethylene.
- PCS
- 1
- 保存容器
- 6.2008.040
- ホルダー 6.2008.050 とともに使用すると 807 Dosing Unit の電極用のホルダーになります。
- <p>ホルダー 6.2008.050 とともに使用すると 807 Dosing Unit の電極用のホルダーになります。</p>
- PCS
- 1
-

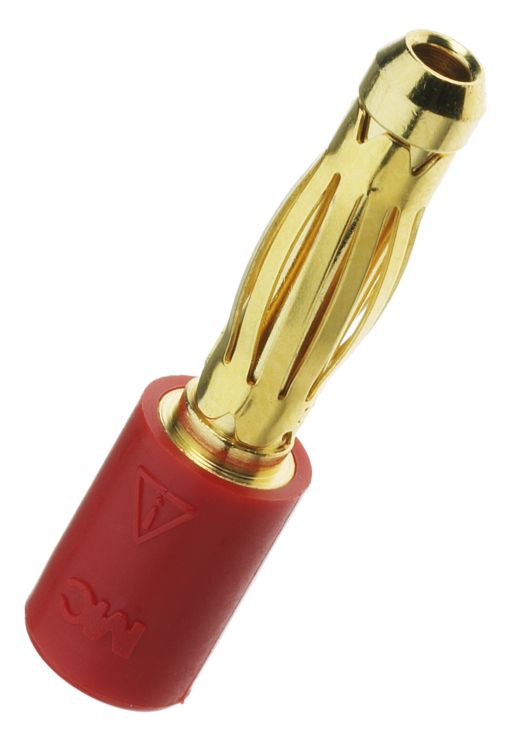

- Adapter red 4 mm plug / 2 mm soc
- 6.2103.150
- Adapter for connecting electrodes with 2 mm plug to instruments with 4 mm socket (banana)
- PCS
- 1
- Electrode cable for plug in head U/plug F, 2x2 mm B, 1m
- 6.2104.600
- For connecting electrodes with Metrohm plug-in head U to Metrohm instruments (socket F).
- PCS
- 1
- Electrode cable for plug in head U/plug F, 2x2 mm B, 2m
- 6.2104.610
- For connecting electrodes with Metrohm plug-in head U to Metrohm instruments (socket F).
- PCS
- 1
- Electrolyte 3 mol/L KCl (250 mL)
- 6.2308.020
- Electrolyte solution c(KCl) = 3 mol/L, (for Ag/AgCl reference systems)
- PCS
- 1
- Electrolyte KNO3-1mol/L 250 mL
- 6.2310.010
- Electrolyte solution KNO3 1 M (reference electrolyte for combined silver electrodes)
- PCS
- 1
- Storage solution
- 6.2323.000
- Storage solution for all combined pH glass electrodes with reference electrolyte c(KCl) = 3 mol/L
- PCS
- 1
- pHit kit
- 6.2325.000
- Maintenance kit for pH electrodes The kit contains:50 mL cleaning solution; 50 mL 3M KCl solution; 50 mL storage solution; 2 Storage vessels; Instructions for use;
- PCS
- 1
- 洗浄液 3 x 50 mL
- 6.2325.100
- Reliable measuring results over long periods of time can be guaranteed only if the pH glass membrane and the diaphragm receive preventive and regular care. Cleaning by etching with toxic chemicals or applying mechanical treatment to the diaphragm is not only complicated and expensive, it also accelerates the ageing of the pH glass electrode.The cleaning solution was developed for easy and gentle cleaning of pH glass electrodes. Regular use can considerably prolong their service life.This cleaning solution is also part of the pHit kit.
- PCS
- 1
