Professional CVS

Flexibla bänkanalysatorer för cyklisk voltametrisk strippning.

Fördelarna Systemen Tillval och uppgraderingar Erfarenheterna

Kort om

Professional CVS innehåller en mängd funktionalitet på ett litet utrymme. Instrumenten tillåter bestämning av organiska tillsatser i galvaniseringsbad med cyklisk voltammetrisk strippning.

Kompakt system för att spara bänkutrymme
Modulär design för skräddarsydda system
Manuella, halvautomatiska och helautomatiska inställningar tillgängliga för att möta dina specifika behov
Kraftfull Viva-mjukvara för full systemkontroll, flexibel metodanpassning och omfattande datahantering

894 Professional CVS – Cyclic Voltammetric Stripping for the determination of additives in electroplating baths (8.894.5003, PDF, 3.31 MB)

Fördelarna

Dedicated to Cyclic Voltammetric Stripping (CVS)

894 Professional CVS fully automated, 858 Professional Sample Processor, 843 Membrane Pump Station, nine 800 Dosinos, Dosino sample transfer, Key Visual, 2025

The Professional CVS is a made-to-measure CVS instrument for the electroplating industry that masters large sample loads and changing applications.

It is the equipment of choice for the analysis of electroplating baths, e.g. to determine the concentration of brighteners, suppressors, or levelers.

Öronmärkt cyklisk voltametrisk strippning (CVS)

Professional CVS är ett måttanpassat CVS-instrument för galvaniseringsindustrin som styr stora provbelastningar och varierande applikationer. Perfekt för analys av galvaniseringsbad, exempelviv för bestämning av koncentrationen av vitmedel, dämpare eller utjämnare.

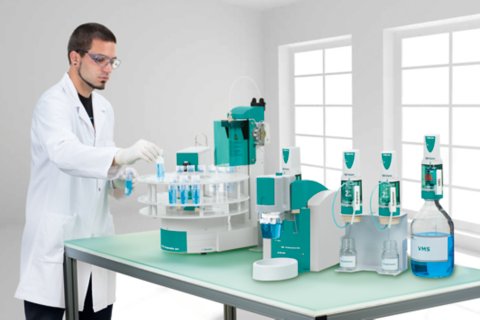

Allt du behöver för snabbare, exakta och säkrare analyser

Professional CVS kan anpassas med automations- och vätskehanteringsmoduler. Du kan som exempel lägga till Dosinos för att ta hand om reagens- och provtillsatser eller pumpstationer för automatisk sköljning. Det minskar användarinteraktion samtidigt som mätnoggrannheten ökas.

Du kan automatisera ditt system ytterligare genom att lägga till en provprocessor för att utföra helautomatiska, mycket exakta och reproducerbara analyser – helt utan tillsyn.

Full systemkontroll med viva

Professional CVS och alla automationsmoduler styrs med den användarvänliga och kraftfulla programvaran viva. viva har en integrerad, mycket flexibel metodredigerare som gör det möjligt att anpassa metoder för att fungera väl ihop med aktuella applikationer.

Viva-databasen – komplett och tydlig

Programvaran viva levereras med en integrerad databas där alla bestämningar lagras med all tillhörande data, som kurvor och resultat. Data visas i en praktisk listvy som låter dig se all viktig information om varje mätning. Inklusive resultaten. Med ett enkelt klick på ett objekt i listan fås omedelbar tillgång till bestämningen med all tillhörande data. Den registrerade datan kan också bearbetas på nytt. Till exempel för att kalibrera om retroaktivt med en nyuppmätt standardlösning.

Why Metrohm CVS instruments?

894 Professional CVS fully automated, 919 IC Autosampler plus for CVS, 843 Membrane Pump Station, three CVS systems, female male lab workers, Key Visual, 2025

Enjoy various advantages with CVS instruments from Metrohm, such as:

Build your ideal configuration with our flexible automation options.
Seamlessly extend your laboratory CVS analysis to the production floor.
Choose your language. Our powerful and flexible viva software is available in English, German, Chinese, and Japanese.
Benefit from our global presence in over 80 countries for local support by our service and application experts.
Rely on Swiss-made quality.

Systemen

884 Professional VA manual for CVS

2.884.0210

884 Professional VA manual for CVS applications is the entry-level for high-end determinations of organic additives in electroplating baths with "Cyclic Voltammetric Stripping" (CVS), "Cyclic Pulse Voltammetric Stripping" (CPVS), and chronopotentiometry (CP), or voltammetric heavy metal determinations with rotating disk electrodes. The proven Metrohm electrode methods combined with a high-performance potentiostat/galvanostat and the extremely flexible viva software open up new perspectives in CVS. The potentiostat with a certified calibrator readjusts itself automatically before each measurement, thus guaranteeing maximum precision. The integrated temperature measurement input allows you to monitor the solution temperature during the measurement.The instrument can also be used to perform voltammetric determinations. The replaceable measuring head enables rapid changes between the various applications with different electrodes. The viva software is required for control, data collection, and evaluation.The 884 Professional VA manual for CVS applications is supplied with extensive accessories and a measuring head for rotating disk electrodes. Electrode set and viva license need to be ordered separately.

884 Professional VA semiautomated for CVS with 2 Dosinos

2.884.1210

884 Professional VA semiautomated for CVS applications is a convenient high-end routine analyzer for determinations of organic additives in electroplating baths with "Cyclic Voltammetric Stripping" (CVS), "Cyclic Pulse Voltammetric Stripping" (CPVS), and chronopotentiometry (CP), or voltammetric heavy metal determinations with rotating disk electrodes. The proven Metrohm electrode methods combined with a high-performance potentiostat/galvanostat and the extremely flexible viva software open up new perspectives in CVS. The potentiostat with a certified calibrator readjusts itself automatically before each measurement, thus guaranteeing maximum precision. The integrated temperature measurement input allows you to monitor the solution temperature during the measurement.The instrument can also be used to perform voltammetric determinations. The replaceable measuring head enables rapid changes between the various applications with different electrodes.2x 800 Dosinos (supplied) permit the automatic addition of auxiliary solutions during the determination, e.g., VMS, standard solutions or samples for the Dilution Titration technique (DT).The viva software is required for control, data collection, and evaluation.The 884 Professional VA semiautomated for CVS applications is supplied with extensive accessories and a measuring head for rotating disk electrodes. Electrode set and viva license need to be ordered separately.

884 Professional VA semiautomated for CVS with 3 Dosinos

2.884.1310

884 Professional VA semiautomated for CVS applications is a convenient high-end routine analyzer for determinations of organic additives in electroplating baths with "Cyclic Voltammetric Stripping" (CVS), "Cyclic Pulse Voltammetric Stripping" (CPVS), and chronopotentiometry (CP), or voltammetric heavy metal determinations with rotating disk electrodes. The proven Metrohm electrode methods combined with a high-performance potentiostat/galvanostat and the extremely flexible viva software open up new perspectives in CVS. The potentiostat with a certified calibrator readjusts itself automatically before each measurement, thus guaranteeing maximum precision. The integrated temperature measurement input allows you to monitor the solution temperature during the measurement.The instrument can also be used to perform voltammetric determinations. The replaceable measuring head enables rapid changes between the various applications with different electrodes.3x 800 Dosinos (supplied) permit the automatic addition of auxiliary solutions during the determination, e.g., VMS, standard solutions or samples for the Dilution Titration technique (DT).The viva software is required for control, data collection, and evaluation.The 884 Professional VA semiautomated for CVS applications is supplied with extensive accessories and a measuring head for rotating disk electrodes. Electrode set and viva license need to be ordered separately.

894 Professional CVS manual

2.894.0210

894 Professional CVS manual is the entry-level instrument for high-end determinations of organic additives in electroplating baths with "Cyclic Voltammetric Stripping" (CVS), "Cyclic Pulse Voltammetric Stripping" (CPVS), and chronopotentiometry (CP). The proven Metrohm electrode methods combined with a high-performance potentiostat/galvanostat and the extremely flexible viva software open up new perspectives in CVS. The replaceable measuring head enables rapid changes between various applications with different electrodes. The potentiostat with a certified calibrator readjusts itself automatically before each measurement, thus guaranteeing maximum precision. The integrated temperature measurement input allows you to monitor the solution temperature during the measurement.The viva software is required for control, data collection, and evaluation.The 894 Professional CVS manual is supplied with extensive accessories and measuring head for rotating disk electrodes. Electrode set and viva license need to be ordered separately.

894 Professional CVS semiautomated with 2 Dosinos

2.894.1210

894 Professional CVS semiautomated is a convenient, high-end routine analyzer for the determination of organic additives in electroplating baths using "Cyclic Voltammetric Stripping" (CVS), "Cyclic Pulse Voltammetric Stripping" (CPVS) and Chronopotentiometry (CP). The proven Metrohm electrode methods combined with a high-performance potentiostat/galvanostat and the extremely flexible viva software open up new perspectives in CVS. The replaceable measuring head enables rapid changes between various applications with different electrodes. The potentiostat with a certified calibrator readjusts itself automatically before each measurement, thus guaranteeing maximum precision. The integrated temperature measurement input allows you to monitor the solution temperature during the measurement.2x 800 Dosinos (supplied) permit the automatic addition of auxiliary solutions during the determination, e.g., VMS, standard solutions or samples for the Dilution Titration technique (DT). The viva software is required for control, data collection, and evaluation.The 894 Professional CVS semiautomated is supplied with extensive accessories and measuring head for rotating disk electrodes. Electrode set and viva license need to be ordered separately.

894 Professional CVS semiautomated with 3 Dosinos

2.894.1310

894 Professional CVS semiautomated is a convenient, high-end routine analyzer for the determination of organic additives in electroplating baths using "Cyclic Voltammetric Stripping" (CVS), "Cyclic Pulse Voltammetric Stripping" (CPVS) and Chronopotentiometry (CP). The proven Metrohm electrode methods combined with a high-performance potentiostat/galvanostat and the extremely flexible viva software open up new perspectives in CVS. The replaceable measuring head enables rapid changes between various applications with different electrodes. The potentiostat with a certified calibrator readjusts itself automatically before each measurement, thus guaranteeing maximum precision. The integrated temperature measurement input allows you to monitor the solution temperature during the measurement.3x 800 Dosinos (supplied) permit the automatic addition of auxiliary solutions during the determination, e.g., VMS, standard solutions or samples for the Dilution Titration technique (DT).The viva software is required for control, data collection, and evaluation.The 894 Professional CVS semiautomated is supplied with extensive accessories and measuring head for rotating disk electrodes. Electrode set and viva license need to be ordered separately.

894 Professional CVS fully automated for small sample series

MVA-20

Automated analysis system for the determination of organic additives in electroplating baths using CVS ("Cyclic Voltammetric Stripping"), CPVS ("Cyclic Pulse Voltammetric Stripping") and CP ("Chronopotentiometry"). Comprising 894 Professional CVS, 919 IC Autosampler plus, four 800 Dosinos, 843 Pump Station, measuring head for rotating disk electrodes and extensive accessories. For small sample series of up to 14 samples.The viva software is required for control, data recording and evaluation. PC, electrode set and viva license are to be ordered separately.

894 Professional CVS fully and flexibly automated for large sample series

MVA-21

Automated analysis system for high-performance, flexible determination of organic additives in electroplating baths using "Cyclic Voltammetric Stripping" (CVS), "Cyclic Pulse Voltammetric Stripping" (CPVS) and chronopotentiometry (CP). Comprising 894 Professional CVS, 858 Professional Sample Processor, four 800 Dosinos, 843 Pump Station, measuring head for rotating disk electrodes and extensive accessories. For sample series of up to 56 samples.The viva software is required for control, data recording and evaluation. PC, electrode set and viva license are to be ordered separately.

884 Professional VA fully automated for CVS and large sample series

MVA-23

Automated analysis system for the high-performance, flexible determination of organic additives in electroplating baths using CVS ("Cyclic Voltammetric Stripping"), CPVS ("Cyclic Pulse Voltammetric Stripping"), and chronopotentiometry (CP), or voltammetric heavy metal determinations with rotating disk electrodes. Comprising 884 Professional VA for CVS, 858 Professional Sample Processor, four 800 Dosinos, 843 Pump Station, measuring head for rotating disk electrodes. and extensive accessories. For sample series of up to 56 samples.The MVA-23 can also be used to perform voltammetric determinations with the Multi-Mode Electrode or the scTRACE Gold.The viva software is required for control, data acquisition, and evaluation. PC, electrode set, and viva license need to be ordered separately.

884 Professional VA fully automated for CVS with Dosino for sample transfer

MVA-24

Automated analysis system for the high-performance, flexible determination of organic additives in electroplating baths using CVS ("Cyclic Voltammetric Stripping"), CPVS ("Cyclic Pulse Voltammetric Stripping"), and CP ("Chronopotentiometry"). Comprising 884 Professional VA for CVS, 858 Professional Sample Processor with Dosino for sample transfer, 4x additional 800 Dosinos for auxiliary solutions, 843 Pump Station, measuring head for rotating disk electrodes, and extensive accessories. For sample series of up to 112 samples.The viva software is required for control, data collection, and evaluation. PC, electrode set, and viva license need to be ordered separately.

2 / 10

Se alla system (10)

Söker du en CVS elektrod? Gå till Elektrodsökaren

Vilket system passar ditt användningsområde?

Kontakta Metrohm Nordic och ta reda på vilken lösning som skulle passa bäst.

Ring

E-post

Tillval och uppgraderingar

Automation
Software

Öka provgenomströmningen

Ditt Professional CVS-system kan utökas med olika automationsmoduler för att öka provflödet, noggrannheten och tillförlitligheten av dina analyser:

Dosinos lägger till reagens och provet automatiskt
Provprocessorer utför helautomatiska analyser av upp till 56 prover i en körning
Pumpstationer sköljer automatiskt mätkärlet
Nivåsensorer skickar ut varningar när avfallscontainrar är fulla och hindrar dem från att svämma över

Till automatiseringsmoduler

User-friendly software

The Professional CVS instruments are controlled with viva. This software lets you:

Adapt the methods to your lab requirements
Set all relevant parameters
Evaluate data and create user-specific results
Manage your data in the database
Create customized reports
Ensure data security in your lab via specific user rights
Automatically adjust the method settings to the sample properties

CVS metodutveckling och optimering

I vår vitbok “Automated CVS Method Development and Optimization of Multicomponent Plating Baths”, analyseras två olika pläteringssystem för att särskilja utmaningarna i metodoptimering.
