Photometric Analysers

Photometric Analysers

Robust, easy-to-use and highly reliable analysers for photometric analysis.

BioSystems provides easy to use, robust and highly reliable semi-automatic and fully automatic discrete analysers.

  • Ensure food quality and safety
  • Perfect for wine analysis
  • Easy, fast, reliable and cost-effective

Instruments, service and support in Australia and New Zealand provided exclusively by Metrohm Australia and New Zealand. Contact us for more information.

Catalogue: Food Safety Products Overview (PDF, 1.4 MB)

Catalogue: Wine Analysis Overview (PDF, 1.5 MB)

Catalogue: SPICA Automatic Analyser (PDF, 1.7 MB)

Flyer: BioSystems Enzymatic/Reagents List (PDF, 0.1 MB)

Looking for perfect system fit?

Talk to your Metrohm representative and learn about the best solution for your needs!

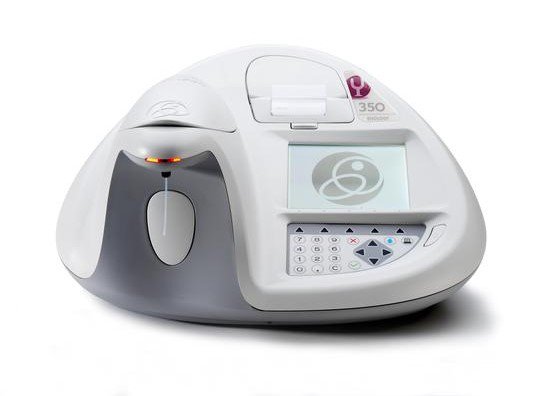

Y350

Metrohm ANZ BioSystems Y350

Specifically deigned to meet the needs of enologists

  • A complete set of LEDs optimised to cover all wavelengths
  • Optimising reagent consumption and minimising maintenance
  • Specific software for colour, TPI (Total Polyphenols Index)
  • Preprogrammed enzymatic and chemical kit methods
Measurement range 0 - 3.5 A all wavelengths
Wavelengths nm 280, 340, 405, 420, 505, 520, 560, 620, 635, 670, 750
Light source LEDs
Flow cuvette 1 μL and 10 μL for TPI and colour analysis
Calibration curve

Up to 8 Calibration points

Up to 3 replicates per point

Quality control Levey-Jennings control chart Westgard‘s Rules

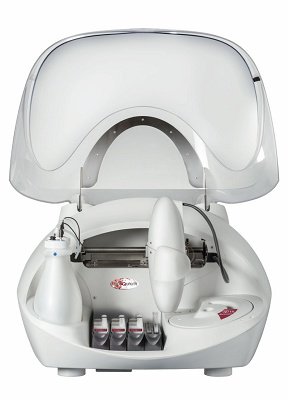

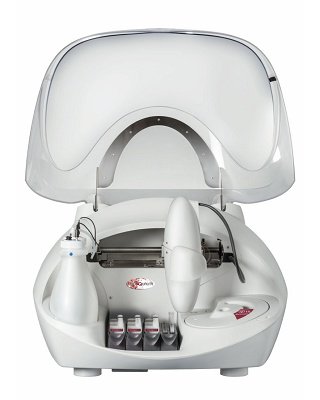

Y15/Y15C

Metrohm ANZ BioSystems

Open, robust, easy-to-use and highly reliable equipment for photometric analysis

  • Random access automatic analyser aimed at giving results per sample
  • Photometric reading directly in the reaction rotor
  • Open system that allows the equipment to monitor the entire vinification process and adjusts to the various sample types
  • Small reagent and sample volumes per assay, low water consumption, and minimal maintenance
  • Continuous sample and reagent loading streamlines the laboratory process
  Y15 Y15C (Cooled)
Measurement range -0.05 A to 3.6 A -0.05 A to 3.6 A
Test rate 150 tests/hour 150 tests/hour
Rack positions 4 2
Samples per rack

24 (multiuse racks)

10 (20 and 50 mL bottles)

24 (multiuse racks)

10 (20 and 50 mL bottles)

Max. number of samples 72 48

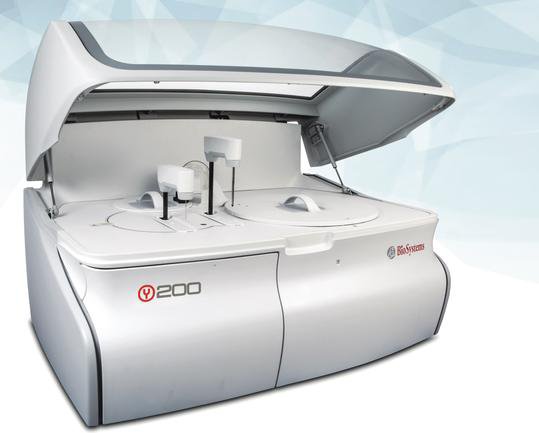

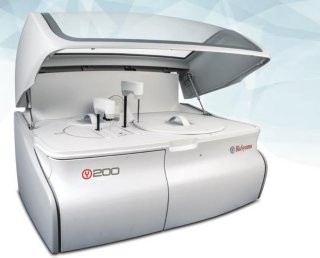

Y200/Y400

Metrohm ANZ BioSystems

Smart efficiency with unlimited flexibility

  • LED optical system
  • Real-time monitoring of kinetics
  • Automatic washing station
  • The double waste circuit (high and low concentration)
  • Automatic pre and post dilutions
  Y200 Y400
Optical system LED + Hard Coating Filter LED + Hard Coating Filter
Test rate 200 tests/hour 400 tests/hour
Wavelengths nm 340, 405, 420, 430, 505, 520, 560, 600, 620, 635, 750 340, 405, 420, 430, 505, 520, 560, 600, 620, 635, 750
Arms/Stirrers 1 / 1 3 /2
Photometric range -0.2 A to 3.5 A -0.2 A to 3.5 A
Capacity of sample/reagent 88 135 / 88

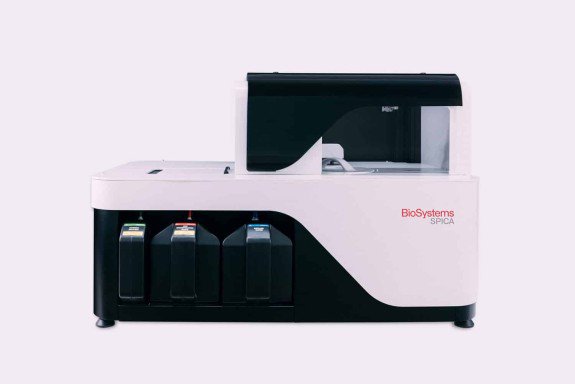

SPICA

Metrohm ANZ BioSystems

Set to revolutionise the automatic and multiparametric analytical platforms

  • Configure and adapt to different analytical needs
  • Connect to any devices and update and manage data in the cloud
  • Improved autonomy and efficiency
  • Robust, repeatability and accurate
Light source LED + Hard Coating Filter
Wavelengths nm

280 - 340 - 405 - 480 - 505 - 535 - 560 - 600 - 635 - 670 - 750

(other wavelengths optional)

10 nm ± 2 nm

Filter bandwidth - 0.2 A to 3.5 A
Wavelength accuracy 0.0001
Sample and reagent rotor capacity 105 positions (7 racks x 15 positions)
Speed From 120 results/h Monoreagent / 50-60 results/h Bi-Tri reagents
