Pt rotating disk electrode (6.1204.170, 6.1204.190, 6.1204.610)

Learn how to install and maintain your platinum rotating disk electrode (Pt RDE).

The following instructions apply equally to 1, 2, and 3 mm Pt electrode tips. Click on the respective section to open it.

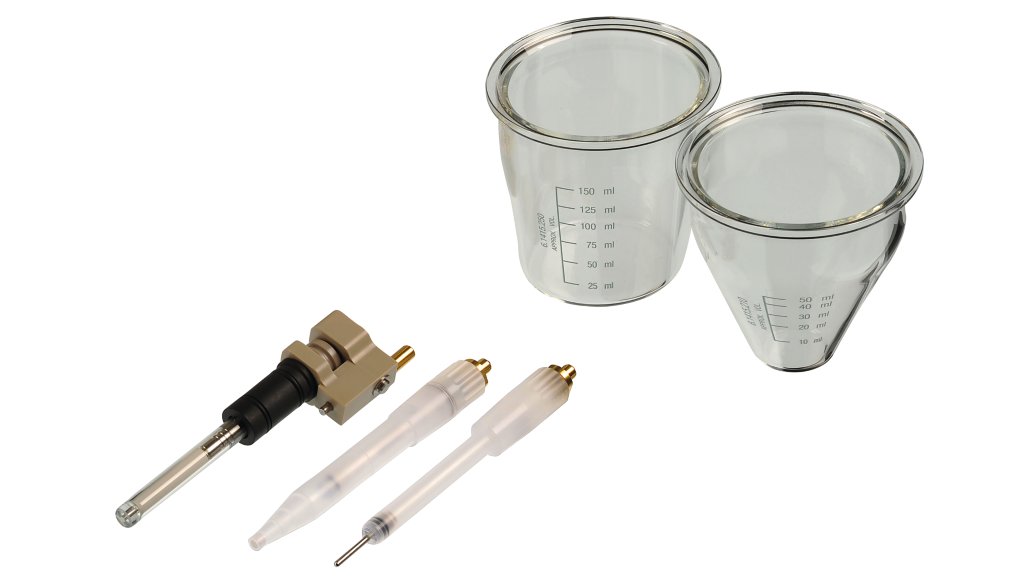

Accessories for Pt RDE electrode: auxiliary electrode, reference electrode, measuring vessel

It is recommended to use accessories, such as auxiliary electrode, reference electrode, and measuring vessel, dedicated to the Pt RDE. This is to avoid cross-contamination from or with other electrode materials.

Predefined electrode sets with different types of Pt RDE, driving axle, reference, and auxiliary electrode are available:

CVS electrode equipment with 1 mm platinum electrode (6.5339.000)
CVS electrode equipment with 2 mm platinum electrode (6.5339.010)
CVS electrode equipment with 3 mm platinum electrode (6.5339.020)
CVS electrode equipment with 2 mm platinum electrode, driving axle with mercury contact, and gel reference electrode (6.5339.060)
CVS electrode equipment with 2 mm platinum electrode, driving axle with mercury contact, gel reference electrode and steel auxiliary electrode (6.5339.110)

Installation

This video shows how to:

Assemble driving axle and RDE tip.

Install Pt RDE in the measuring head.

Install reference and auxiliary electrode.

Connect electrode cables.

Maintenance

Solid-state electrodes, such as a Pt RDE, must be cleaned and conditioned on a regular basis to maintain a constant performance.

Mechanical cleaning, such as polishing with aluminum oxide, is not recommended since it destroys the polished surface. Instead, electrochemical cleaning is recommended. Details about cleaning and conditioning solutions and the voltammetric parameters to be used can be found in the respective application instructions.

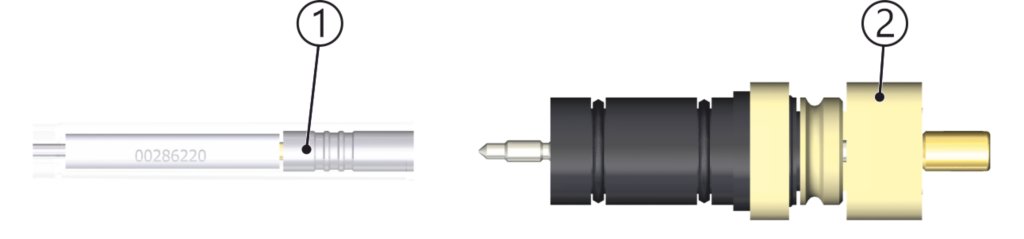

Platinum electrode tip:
2 mm Pt tip for CVS (6.1204.610)

Alternative:
1 mm Pt tip for CVS (6.1204.190)
3 mm Pt tip for CVS (6.1204.170)

RDE driving axle:
for Professional VA/CVS instruments
Driving axle (6.1204.510)

Alternative:
Driving axle with mercury contact (6.1204.520)
for 797 VA Computrace
Driving axle (6.1204.210)
Driving axle with mercury contact (6.1204.220)

For the connection of the RDE with the electrode cables of the 797 VA Computrace, an adapter plug contact / screw contact (6.2112.130) is required.
