Continuous Flow Analyser
The NexaFlo® series offers an advanced and automated segmented flow analysis solution for environmental, agricultural, food, beverage, tobacco, and industrial laboratories.
Testing is performed automatically, including integrated inline sample preparation. These systems streamline laboratory operations by automating complex and time-consuming sample preparation steps, such as:
- Online distillation – Ammonia, phenol index, cyanides, volatile acidity, free and total SO₂ (wine)
- Online digestion – Automated in-line digestion, including UV digestion, for simplified sample preparation.
- Online extraction – Determination of MBAS surfactants (methylene blue active substances)
The systems also support a range of autosamplers to accommodate current and future laboratory requirements. Automatic startup and shutdown capabilities enable reliable unattended operation and overnight testing.
Flexible configurations allow the simultaneous operation of up to 14 independent analytical channels from a single workstation.
Features
- Complete automation: programmable start and stop, standard solution preparation, pre- and post-dilution of out-of-range samples, and automatic rinsing.
- High modularity: integrated or combined instruments with up to 14 channels, multiple flow cells, micro- or macro-flow.
- High throughput: high throughput, up to 120 samples/hour with autosampler, complete automation of routine and complex chemical analyses.
- Advanced software: user-friendly analysis software, EPA/ISO methods available for various matrices.
- Compliance with recognised reference methods
Benefits
Increase Laboratory Productivity: High-throughput analysis and automated workflows help laboratories process more samples with less manual effort.
Deliver Reliable, Reference Method Equivalent Results: Proven segmented flow analysis technology provides accurate, reproducible results comparable to established reference methods.
Reduce Operator Intervention: Automated sample handling, dilution, calibration, and rinsing minimise routine manual tasks and free up analyst time.
Adapt to Changing Laboratory Requirements: Modular system configurations and flexible flow manifold options allow the system to grow with your analytical needs.
Systems

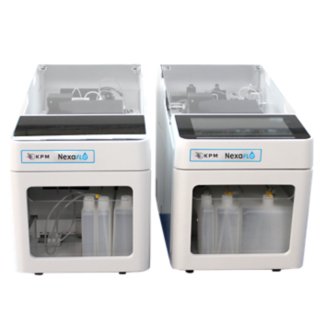

NexaFlo®
- NexaFlo® 400: No built-in display
- NexaFlo® 450: 7-inch color touchscreen for real-time monitoring of test results
Software:
- NexaFlo® 400: Management via NexaFlo® software on PC
- NexaFlo® 450: Software accessible on both PC and console
Features:
- NexaFlo® 400: Integrated bubble and leak detection with UV/Vis colorimetric detection and optional flame photometer or fluorometer configurations.
- NexaFlo® 450: Integrated touchscreen interface with diagnostic tools, LED instrument health status indicators, and simplified maintenance features.
Speak to our specialists and find the system best suited to your laboratory and application.
