Cuvette Holder
DRP-CUV
Cuvette Holder
en
DRP-CUV
Visão geral
Three-way cuvette holder for cuvettes up to one centimeter in length. It is designed for absorbance and fluorescence measurements with liquid samples. Includes three collimating lenses for straight-through (absorbance) or 90° (fluorescence) measurements and fiber
optic connections at each of three collimating lenses. This collimating lenses couple to optical fibers to illuminate,
excite or read the sample such as ref. TFIBER-VIS-UV
Additional information:
· Pathlength 1 cm
· Z-dimension 15mm
· Filter slot Accepts filters up to 6.35 mm (1/4”) thickness
· Collimating lenses 3 x 74-UV fused silica lenses (200-2000 nm)
· Fiber optic termination SMA 905
-
- SPELEC UV-VIS Instrument (200-900 nm)
- DRP-SPELEC
- SPELEC is an instrument for performing spectroelectrochemical measurements. It combines in only one box a Lightsource, a Bipotentiostat/Galvanostat and a Spectrometer (UV-VIS wavelength range: 200-900 nm) and includes a dedicated spectroelectrochemical software that allows optical and electrochemical experiments synchronization.
- <p>SPELEC is an instrument for performing spectroelectrochemical measurements. It combines in only one box a Lightsource, a Bipotentiostat/Galvanostat and a Spectrometer (UV-VIS wavelength range: 200-900 nm) and includes a dedicated spectroelectrochemical software that allows optical and electrochemical experiments synchronization.</p>
- PCS
- 1
- SPELEC NIR Instrument (900-2200 nm)
- DRP-SPELEC-NIR
- SPELEC NIR is an instrument for performing spectroelectrochemical measurements. It combines in only one box a Lightsource, a Bipotentiostat/Galvanostat and a Spectrometer (NIR wavelength range: 900-2200 nm) and includes a dedicated spectroelectrochemical software that allows optical and electrochemical experiments synchronization.
- <p>SPELEC NIR is an instrument for performing spectroelectrochemical measurements. It combines in only one box a Lightsource, a Bipotentiostat/Galvanostat and a Spectrometer (NIR wavelength range: 900-2200 nm) and includes a dedicated spectroelectrochemical software that allows optical and electrochemical experiments synchronization.</p>
- PCS
- 1
- SPELEC VIS-NIR Instrument (350-1050 nm)
- DRP-SPELEC1050
- SPELEC1050 is an instrument for performing spectroelectrochemical measurements. It combines in only one box a Lightsource, a Bipotentiostat/Galvanostat and a Spectrometer (VIS-NIR wavelength range: 350-1050 nm) and includes a dedicated spectroelectrochemical software that allows optical and electrochemical experiments synchronization.
- <p>SPELEC1050 is an instrument for performing spectroelectrochemical measurements. It combines in only one box a Lightsource, a Bipotentiostat/Galvanostat and a Spectrometer (VIS-NIR wavelength range: 350-1050 nm) and includes a dedicated spectroelectrochemical software that allows optical and electrochemical experiments synchronization.</p><p> </p>
- PCS
- 1

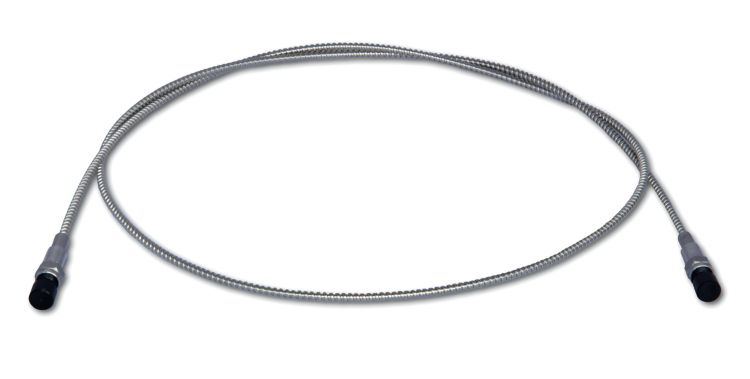

- Transmission fiber VIS-UV
- DRP-TFIBER-VIS-UV
- Transmission fiber VIS-UV designed to perform transmission experiments suitable to work with our Transmission Cell for transparent Screen-printed electrodes or with any conventional cell
- <p>Transmission fiber VIS-UV designed to perform transmission experiments suitable to work with our Transmission Cell for transparent Screen-printed electrodes or with any conventional cell</p>
- PCS
- 1
