Autolab Spectrophotometer UA

AUT.SPECT.UA.S

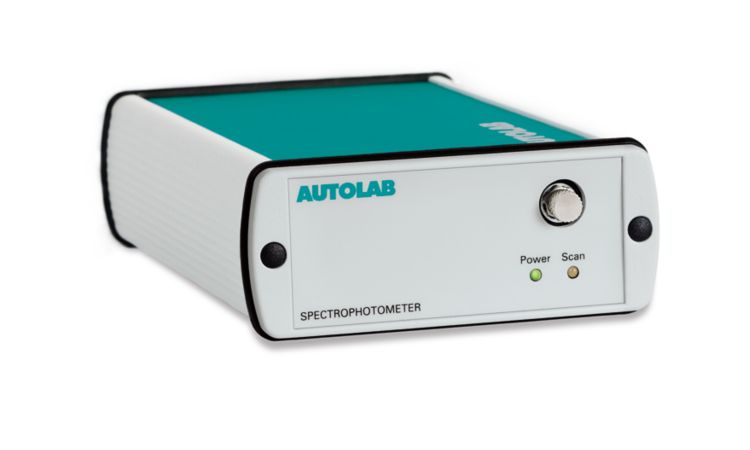

Autolab Spectrophotometer UA

AUT.SPECT.UA.S

Feature overview

The Autolab Spectrophotometer UA is a compact device for applications in the UV/VIS/NIR wavelenght range (from 200 nm to 1100 nm). This instrument is designed to work in combination with all Autolab potentiostat/galvanostat instruments and is supported by the NOVA software.The spectrophotometer can be manually controlled or can be synchronized with electrochemical measurements. This ensures accurate timing during the measurements and allows a direct correlation between the electrochemical and spectroscopic data.

Tech specs

Wavelength range	200 nm - 1100 nm
Resolution	2.5 nm
Stray light	0.22 %
Sensitivity	310000 counts/μW per ms integration time
Fiber optic connector	SMA-905
Detector	CCD linear array, 2048 pixels
Maximum number of scans	1013 scans of 2048 pixels
A/D converter	16 bit, 2 MHz
Integration time	1.05 ms - 600 s
Power requirements	12 V DC / 350 mA
Dimensions	175 mm x 110 mm x 44 mm

- Standard USB cable
- CBL.USB
- Standard USB cable for Autolab instruments.
- Standard USB cable for Autolab instruments.
- PCS
- 1
- Standard USB cable
- CBL.USB
- Standard USB cable for Autolab instruments.
- Standard USB cable for Autolab instruments.
- PCS
- 1
- Autolab 200 μm optical fiber for UV/VIS/NIR applications.
- AUT.FIBER.200.UVIR
- The Autolab spectrophotometer and light source are designed to connect to the electrochemical cell or cuvette holder using optical fibers. The standard dimensions of the optical fibers is 2 m in length and 200 μm in diameter. The fibers are fitted with SMA-905 connectors on both ends.
- The Autolab spectrophotometer and light source are designed to connect to the electrochemical cell or cuvette holder using optical fibers. The standard dimensions of the optical fibers is 2 m in length and 200 μm in diameter. The fibers are fitted with SMA-905 connectors on both ends.
- PCS
- 1
- Cuvette holder
- CUV-UV/VIS
- The cuvette holder provides the possibility to carry out transmission measurements using a classic 10 mm glass or quartz cuvette. The holder is fitted with two SMA-905 connectors with collimating lenses built-in. A cover is provided to shield the cuvette from environmental light.
- The cuvette holder provides the possibility to carry out transmission measurements using a classic 10 mm glass or quartz cuvette. The holder is fitted with two SMA-905 connectors with collimating lenses built-in. A cover is provided to shield the cuvette from environmental light.
- PCS
- 1
- Spectroelectrochemistry trigger cable for DIO12 instruments
- DIO12.SPEC.TRIGGER.S
- Triggering cable required for synchronized spectroelectrochemical measurement in combination with Autolab instruments equipped with a DIO12 interface. This cable provides a direct connection between the digital input/output (DIO) port of the Autolab and the Autolab light source and Autolab spectrophotometer. The connection to the light source enables the remote control of the shutter and the connection to the spectrophotometer provides the possibility to synchronize the acquisition of spectroscopy data with the acquisition of electrochemical data.
- Triggering cable required for synchronized spectroelectrochemical measurement in combination with Autolab instruments equipped with a DIO12 interface. This cable provides a direct connection between the digital input/output (DIO) port of the Autolab and the Autolab light source and Autolab spectrophotometer. The connection to the light source enables the remote control of the shutter and the connection to the spectrophotometer provides the possibility to synchronize the acquisition of spectroscopy data with the acquisition of electrochemical data.
- PCS
- 1
- Spectroelectrochemistry trigger cable for DIO48 instruments
- DIO48.SPEC.TRIGGER.S
- Triggering cable required for synchronized spectroelectrochemical measurement in combination with Autolab instruments equipped with a DIO48 interface. This cable provides a direct connection between the digital input/output (DIO) port of the Autolab and the Autolab light source and Autolab spectrophotometer. The connection to the light source enables the remote control of the shutter and the connection to the spectrophotometer provides the possibility to synchronize the acquisition of spectroscopy data with the acquisition of electrochemical data.
- Triggering cable required for synchronized spectroelectrochemical measurement in combination with Autolab instruments equipped with a DIO48 interface. This cable provides a direct connection between the digital input/output (DIO) port of the Autolab and the Autolab light source and Autolab spectrophotometer. The connection to the light source enables the remote control of the shutter and the connection to the spectrophotometer provides the possibility to synchronize the acquisition of spectroscopy data with the acquisition of electrochemical data.
- PCS
- 1
