Raman probe 638
DRP-RAMANPROBE638
- Overblik over funktioner
Reflection probe designed to be used with a single excitation 638 nm wavelength (up to 300 mW). Suitable to work with DropSens Raman cell for screen-printed electrodes (ref. RAMANCELL), Raman cell for conventional electrodes (ref. RAMANCELL-C) or with any conventional Raman set-up.
Udstyr Din Raman probe 638
Download PDF med tilbehør
Download PDF med tilbehør- Valgfrie dele
Raman spectroelectrochemical cell for conventional electrodes
DRP-RAMANCELL-C
Cell in PEEK for Raman spectroelectrochemical measurements. Designed be used with ref. RAMANPROBE and conventional Metrohm electrodes.

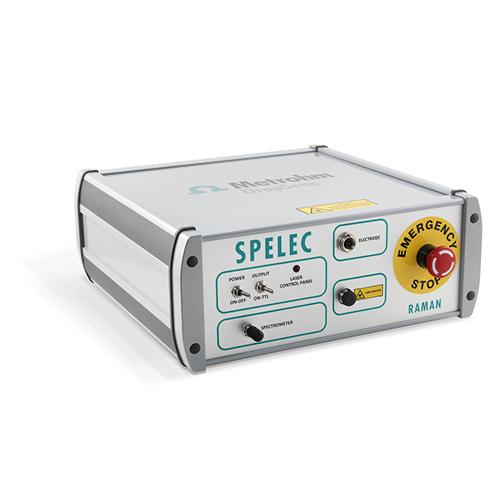

Spectroelectrochemical Raman instrument (638 nm laser)
DRP-SPELECRAMAN638
SPELECRAMAN638 is an instrument for performing spectroelectrochemical Raman measurements. It combines in only one box a laser class 3B (638 nm ± 0.5), a bipotentiostat/galvanostat and a spectrometer (wavelength range 640 – 885 nm and Raman shift 50 – 4370 cm-1) and includes a dedicated spectroelectrochemical software that allows optical and electrochemical experiments synchronization.
Raman Cell for Screen-Printed Electrodes
DRP-RAMANCELL
Black teflon reflection cell for performing Raman Spectroelectrochemistry with screen-printed electrodes in combination with ref. RAMANPROBE.
